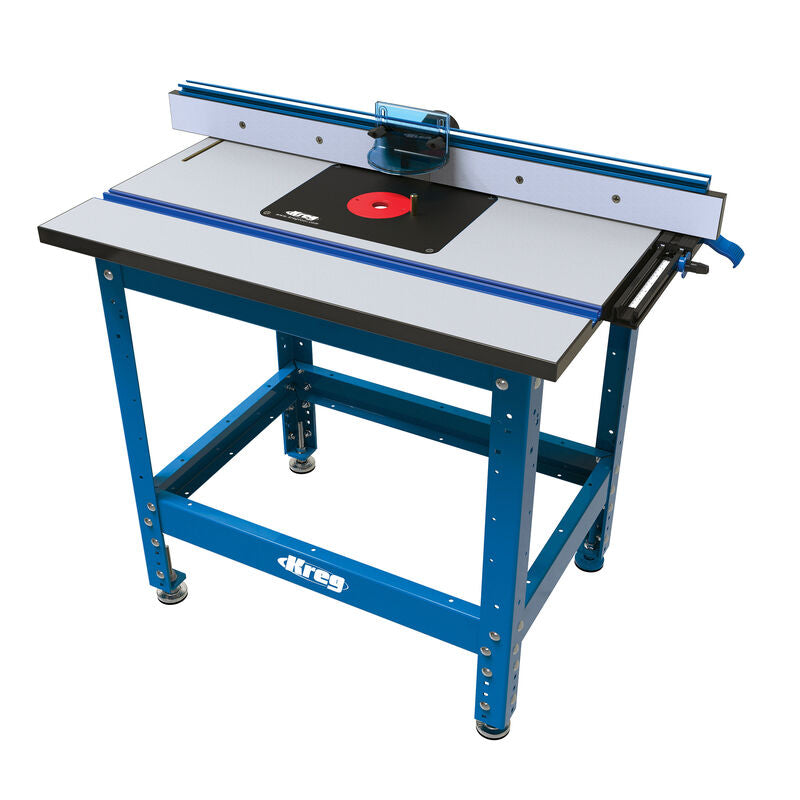

Kreg Precision Router Table System
£648.00 GBP
Taxes included.
PRS1045
The Kreg® Router Table combines unmatched versatility with incredible customization and easy adjustment to take your woodworking projects to the next level. This powerful system features a unique router fence, a large, durable work surface, and a sturdy base that together meet all your precision routing needs.
Our special Easy-Slide™ surface, the insert plate with quick-change reduction rings, and unique accessories ensure the best possible routing experience.
Table Top Highlights
- Very robust tabletop made from 25 mm thick MDF
- Tabletop dimensions: 813 x 609 x 25 mm
- Plastic-laminated with neatly finished edging
- Slightly "studded" surface for a pleasant feel
- Very clean and precise workmanship
- Includes C-slot profile rail (12.7 x 7.6 x 11 mm), anodized aluminium
- Includes U-groove profile rail (19 x 9.5 mm), anodized aluminium
Base Frame Highlights
- Very stable and sturdy base frame
- Approximate weight: 22 kg
- Height adjustable: min. 787 mm to max. 991 mm
- Strong, bolted double struts for added stability
- Expandable into a base cabinet
- Sheet thickness/ cross bracing: U-profiles (~2 mm), angle profiles (~4 mm)
- Load capacity: 270 kg (evenly distributed across all four legs)
Mounting Plate Highlights
- Dimensions: 298 x 235 x 9.5 mm (coated Pertinax)
- Quick-release system for insert rings
- 90 mm recess with insert rings (50.8 mm and 30.55 mm)
- Pre-drilled holes for fence pin and leveling screws
Precision Routing Fence Highlights
- Robust aluminum fence for precision and stability
- Innovative, self-aligning L-design
- Micro-fine adjustment with unique adjustment disk
- Extra rearward adjustability for grooving (thanks to center-mounted insert plate)
- Important: Always route against the rotation direction of the bit!
- Includes height-adjustable transparent safety guard
- Fence travel: 200 mm with quick-release and fine adjustment
- Scales included for optional attachment
- Integrated dust extraction module
- Total fence length: 914 mm
- Stop jaw length: 457 mm each
- Overall length with extended jaws: 1017 mm
- Stop jaw height: 61 mm
- Total fence height: 85 mm
- Dust port inner/outer diameter: 58/ 62 mm.
application
Fits 1"-thick tables
Construction
Anodized aluminum, particle core, melamine, steel
Adjustability
Height adjustable from min 787 mm to max. 991 mm
Compatibility
- Precision Router Lift
- 3" Dual-Locking Casters
- Multi-Purpose Router Table Switch (sold separately)
- True-FLEX™ Featherboards (sold separately)
- Precision Router Table Stop (sold separately)
- Precision Router Table Setup Bars
dimensions
24" x 32" Table
Includes
- 1x Precision router table top (PRS1025)
- 1x Precision router fence with suction nozzle (PRS1015)
- 1x Universal base frame (KRS1035)
- 4x Compensation pieces
- 1x Mounting plate incl.:
- 2x Insert rings
- 1x Free milling fence pin.
